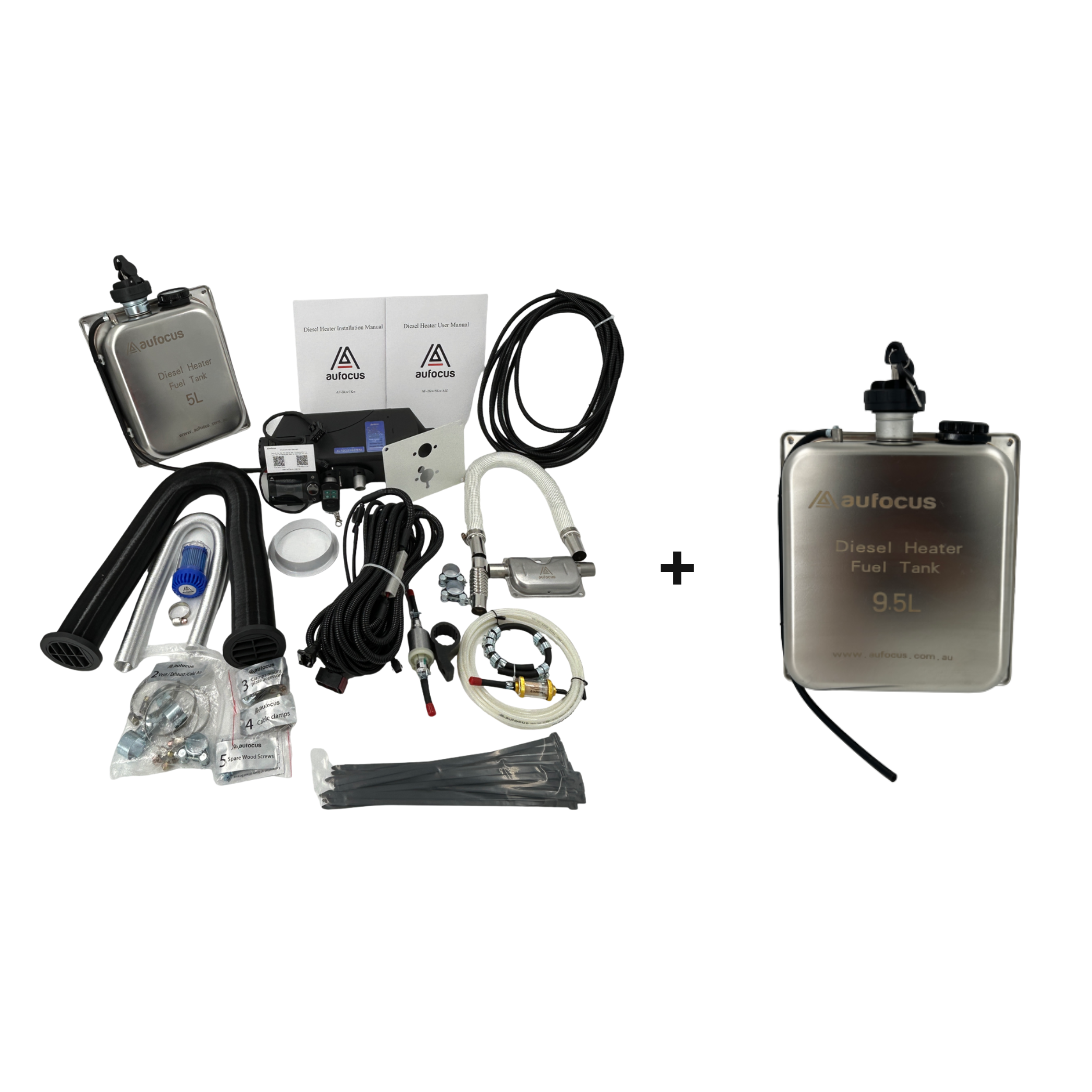

Au Focus 2kW MZ Diesel Heater with 9.5L Tank Upgrade
-
Easy to follow DIY Installation manual.
Easy to read User Manual.

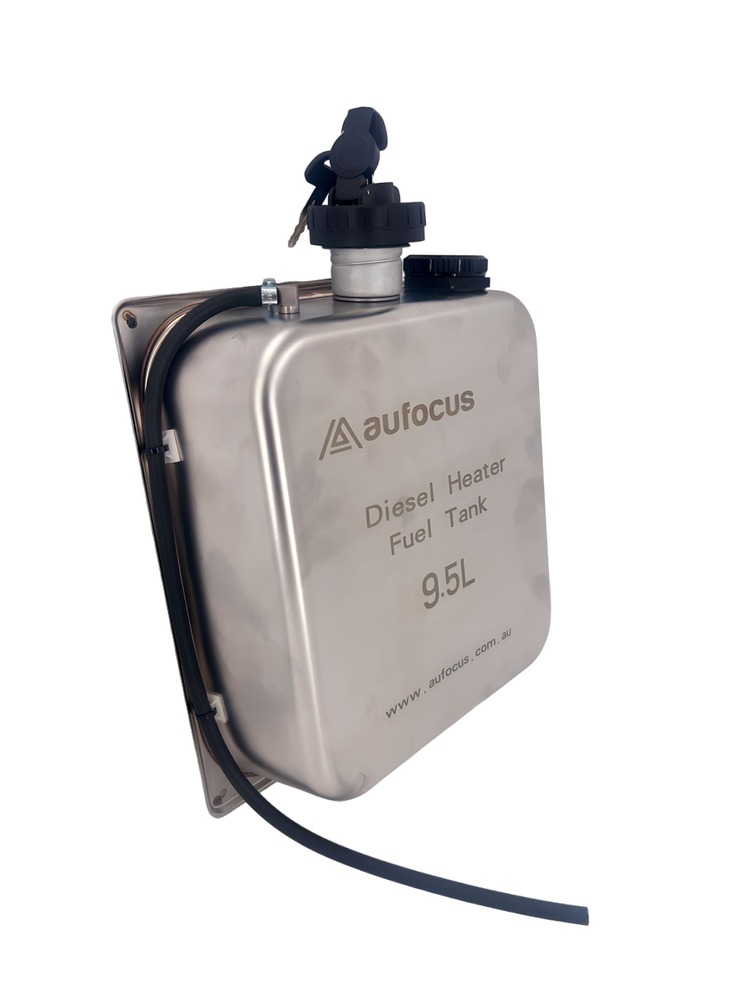

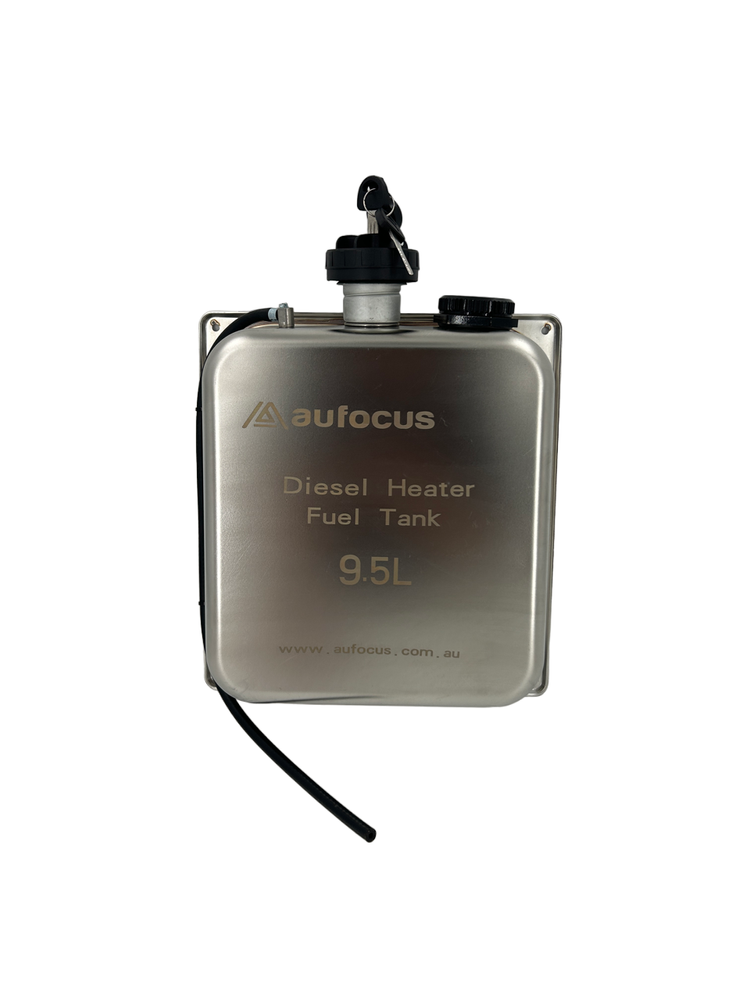

5L Stainless Steel (304 grade) Fuel Tank with top mounted dial fuel level gauge, fuel pickup and lockable fuel cap.
LCD panel with remote control plus easy to download app to control the heater from your mobile phone.
Solidly constructed with high grade heat resistant hard casing.
2 x Directional Flat vents.
Super quiet heavy duty fuel pump.
PA66 hard nylon fuel line 6m (4mm diameter, 1mm wall thickness), with black rubber connectors and heavy duty conduit.
Unique design wiring harness. The wiring harness includes a 5m power cable (2.5mm core wiring), a 2.5m LCD controller cable and a 3m pump power cable. All cables are in flame retardant conduit and Anderson Plugs for easy installation (plug and play).
Quality Air Filter
Premium reusable fuel filter made with alloy top and base.

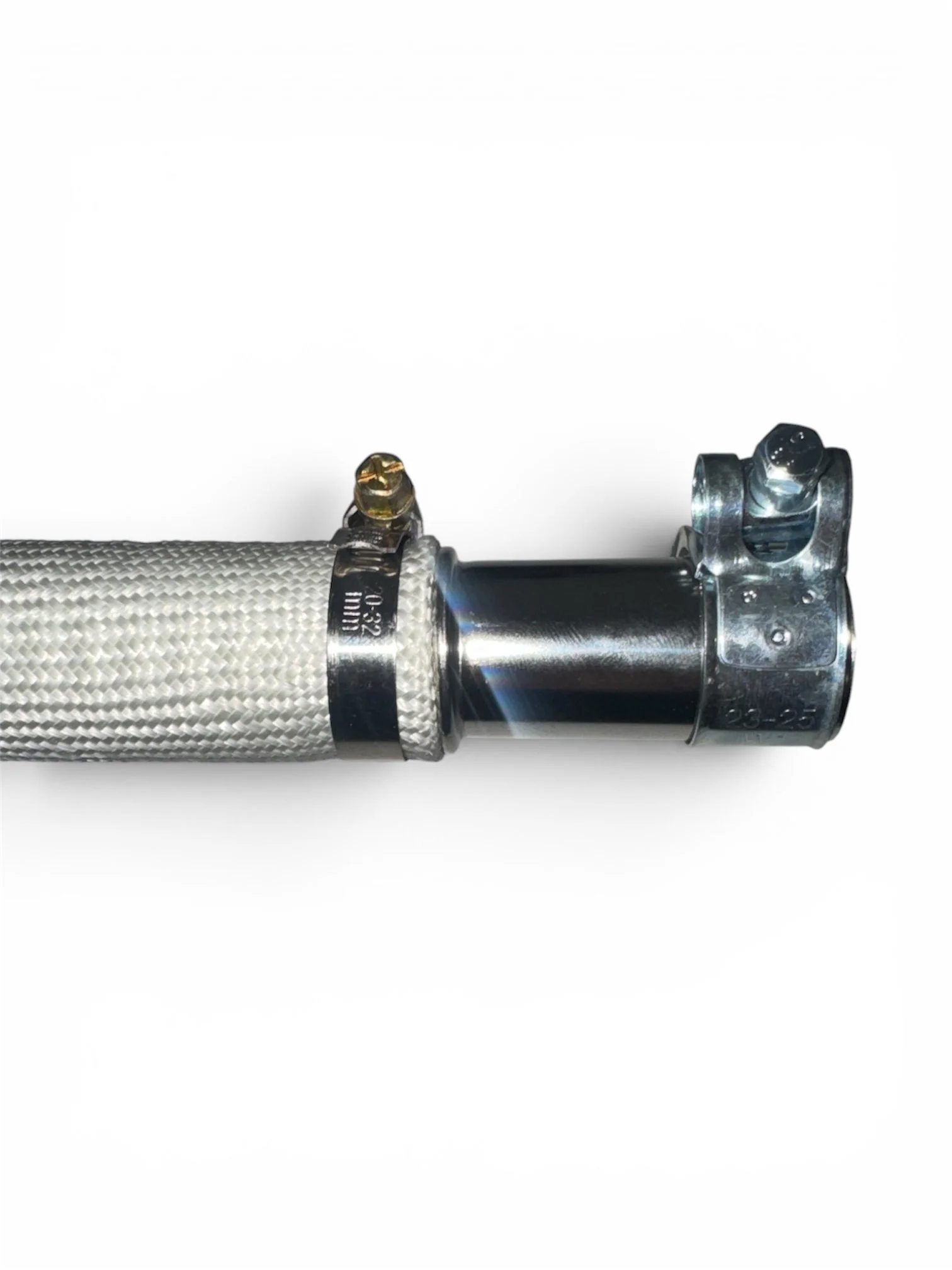

High grade exhaust with flame retardant sleeve, a heavy duty baffled muffler and exhaust tip.
Powder coated mounting plate with protective flange ring to protect the floor and provides the best possible seal between the caravan floor and the undercarriage.
Thicker durable plastic cable ties.

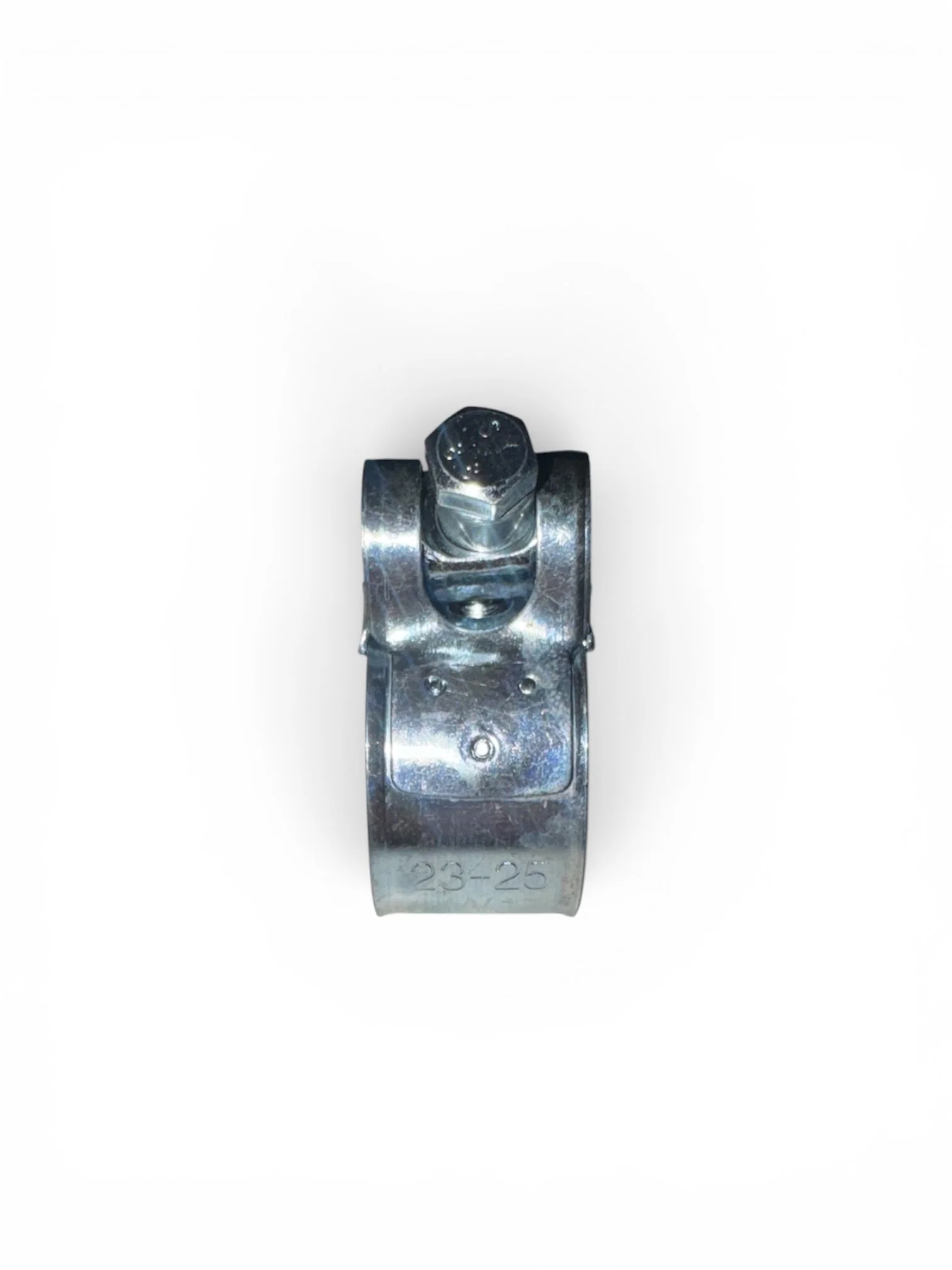

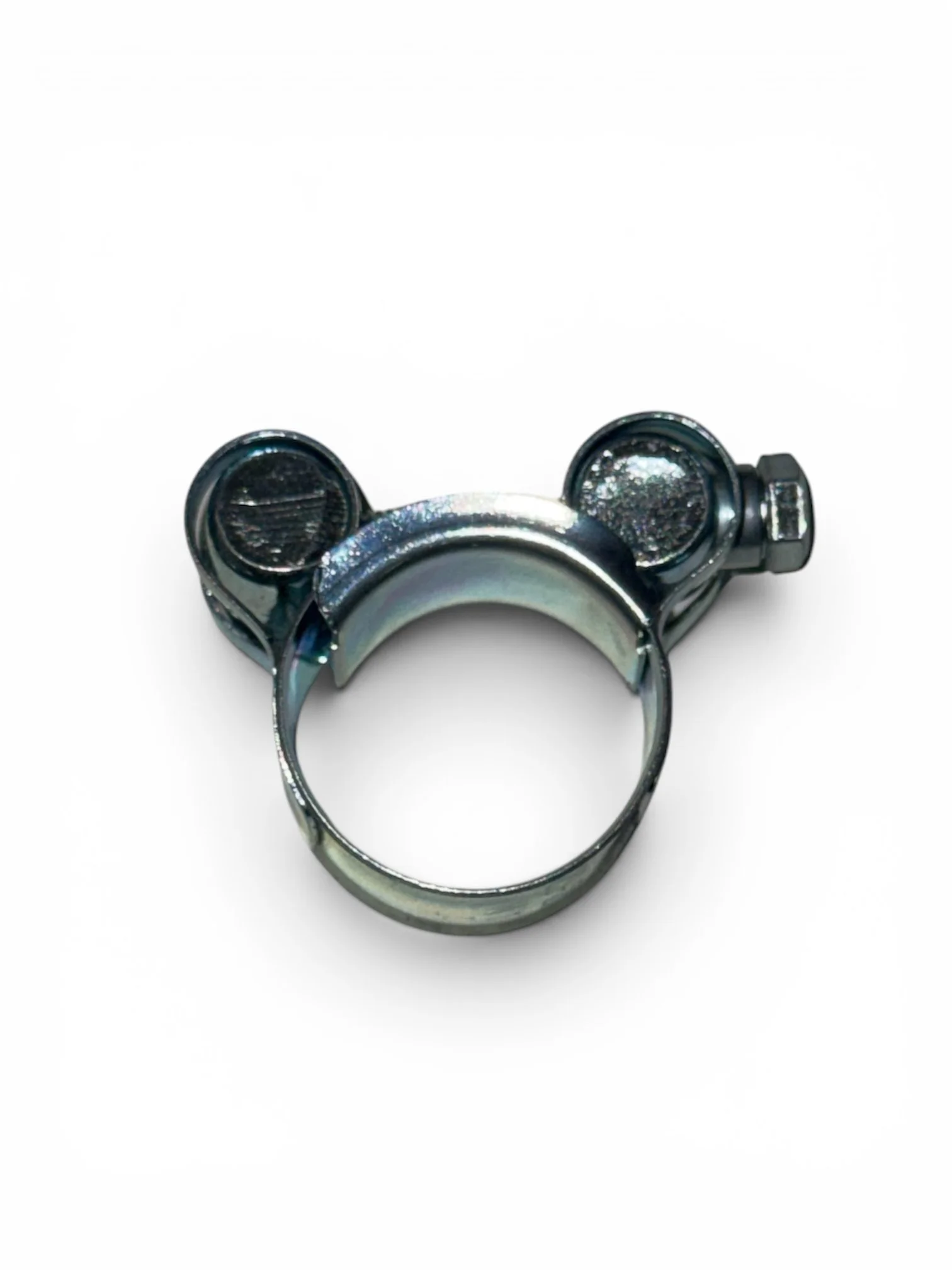

High quality clamps and other accessories required to complete the installation.
-
RCM and EMC Certification.
Three modes: 1. Fan only, 2. Manual Heat Mode 1 - 10, 3. Smart mode - The heater stops heating and burning fuel once it arrives at a set temperature. If the temperature then drops 2 degrees celsius the heater resumes.
Small and compact design allowing for a space-saving installation.
Easy to use LCD panel with remote control also features, Bluetooth connectivity and app to control from your phone.
Sensors on both the control board and fan for additional safety protection.
High and Low Voltage & current protection.
Fast heat up time and maintains a consistent temperature.
Auto cool down process when powered off.
Low fuel consumption.
-
Power: 1kW - 2kW adjustable.
Fuel: Diesel only.
Rated Voltage: DC 12V
Fuel Consumption (L/h): 0.1-0.3
Working Temperature: -400~+500
Main Unit Size: Length 340mm x Width 115mm x Height 115mm.
Fuel Tank Size: Length 265mm x Height 325mm x Depth 110mm.
Fuel Neck & Cap Height 70mm.
Black flame retardant plastic casing.
LCD Control Panel - Also displays error codes for easy troubleshooting if required.
Power (5~35w/h), peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.
